1 Ton HT-10+ Mini Excavator
Price
AU$10,990.00
1 Ton HT-10s Mini Excavator
- HIGHTOP
- Multiple engine options
- Independent boom swing standard
- Comes with 400mm toothed bucket as standard
- Additional attachments available for purchase
- Machine will come in secure wooden boxing
- 12 months parts warranty
Delivery
- Free delivery with unloading within 300km of all major cities, check your postcode at checkout
- If your location is outside of this range, please check with us before ordering and we can provide a quote
- International delivery also available upon request
Please contact our team with the enquiry form below, or email us at diggerworldsales@gmail.com if you have any questions
Specifications

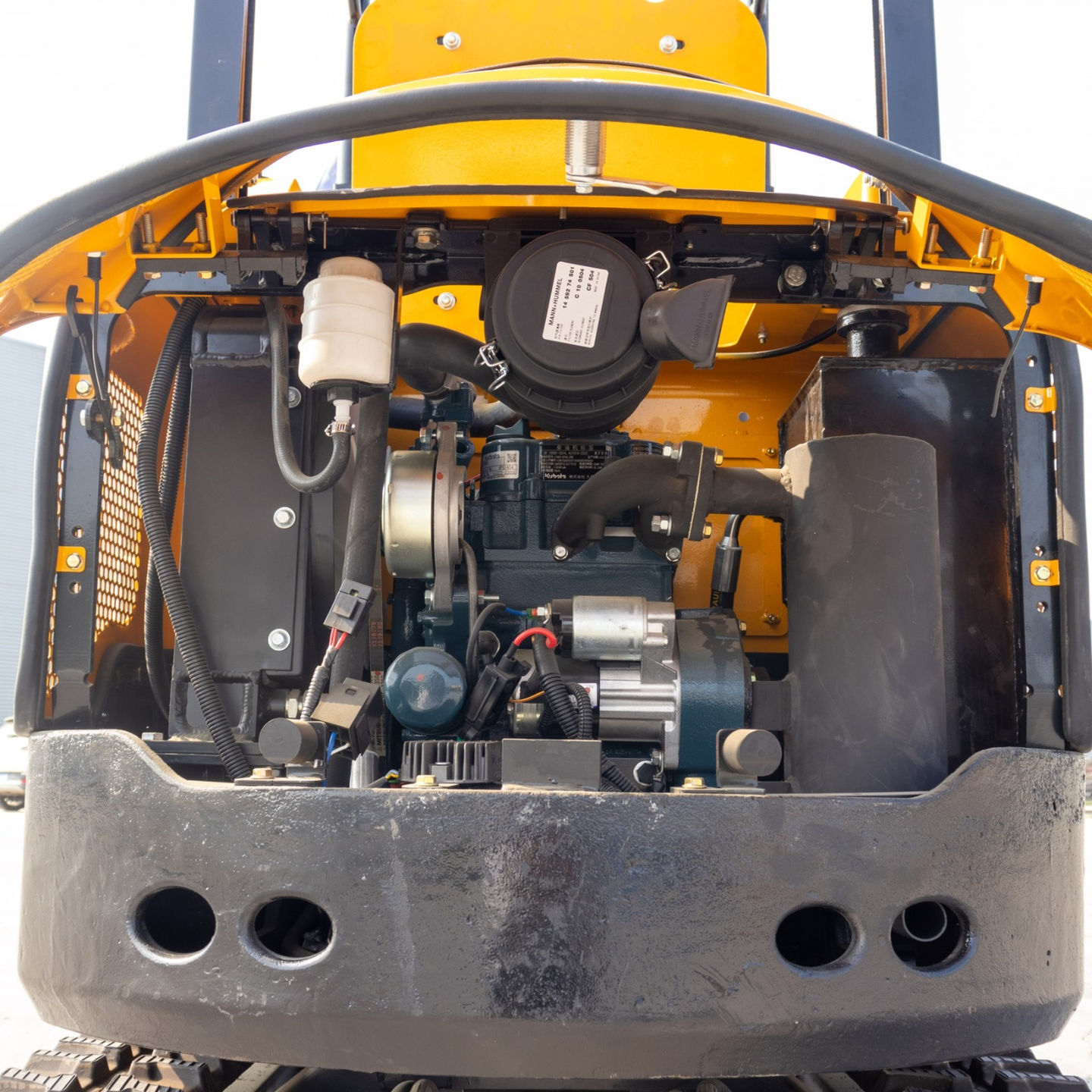

| Operating Weight | Koop Engine 192F / Kubota Z482 |
| Engine Options | 10HP / 11HP |
| Fuel Type | Diesel / Diesel |
| Operating Weight | 1000kg |
| Boom Independent Swing | Optional |
| Telescopic Tracks | Optional |
| Digging bucket capacity | 0.025cbm |
| Default Bucket width | 380mm |
| Bore stroke | Single cylinder, fan cooled |
| Displacement | 6.8ml/r |
| Travel speed | 1.5km/h |
| Overll dimension( LxWxH) | 2380 x 940 x 2268 mm |
| Wheelbase | 910 mm |
| Total length of track | 1204mm |
| Platform ground clearance | 380 mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 320 mm |
| Track height | 132 mm |
| Max. Digging depth | 1855 mm |
| Max. Vertical digging depth | 1550 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 3050 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |
Excavator Attachments
